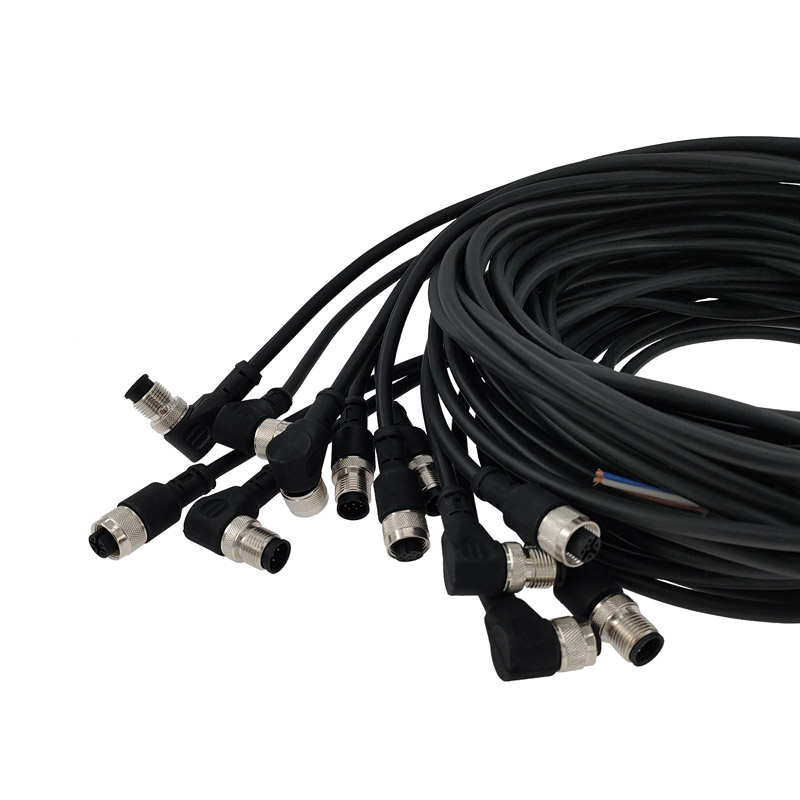

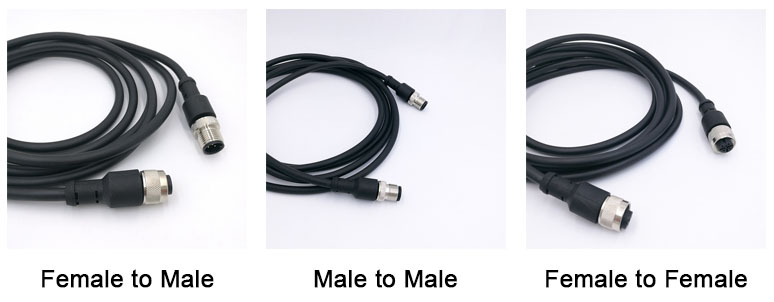

| Wire Spec | Custom Aviation Cable are pure copper or according to customer's request to produce |
| Color | Black or custom color |
| Length | 1M, 2M, 3m, 5m, 10m, 20m, 30m, 50m, 100m or Custom length |
| Outer Insulation | PVC, TPU |
| Package | Inner:oppbag outer:standard export cartons or custom package |
| OEM & ODM Service | Suooprt OEM order |
| Samples: | Offer samples to confirm before mass production |

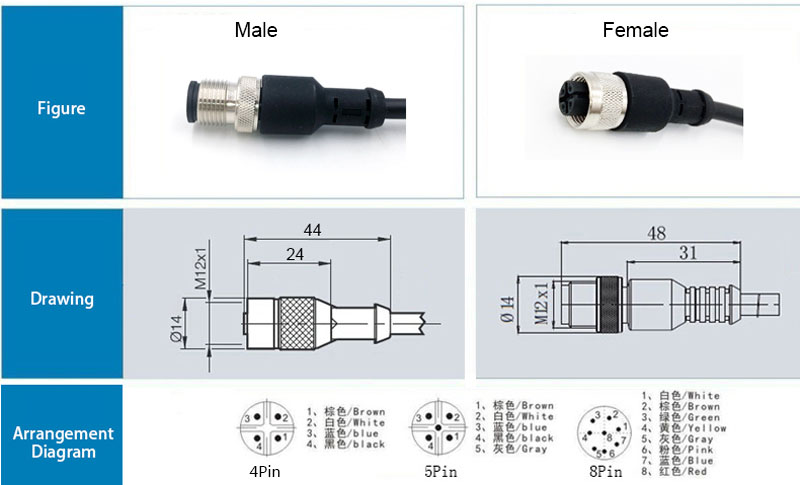

| Technical Drawing: | Offer technical drawing to check before production |
| Application | Electronics, Automotive, Transportation, Medical, Oil Exploration, Military Industry, |
| Aviation, Marine Exploration Industries, Metro Device, Bank Device, Network Project | |
| Certification | CE, ISO, RoHS, SGS etc |
| Lead Time | Usually 7-15days; if urgent order, we could help to delivery within 3-5days. |
| Payment Method | T/T, Paypal, Western Union, MoneyGram ,Escrow, Alipay, Alibaba Trade Order etc. |
|

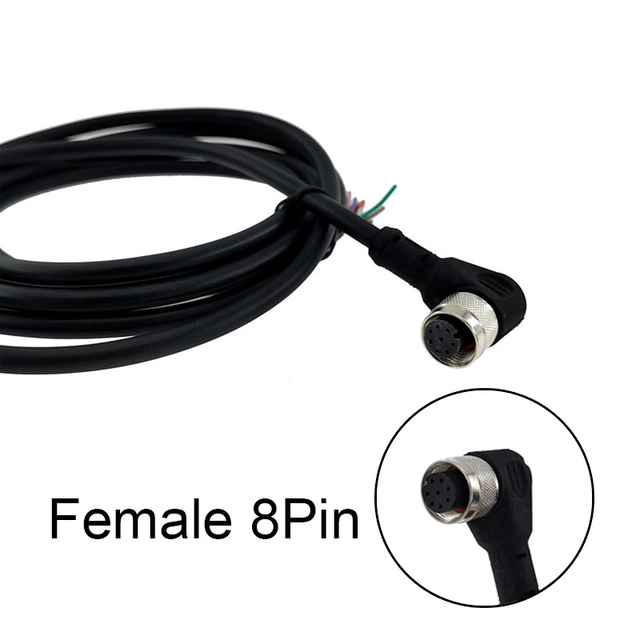

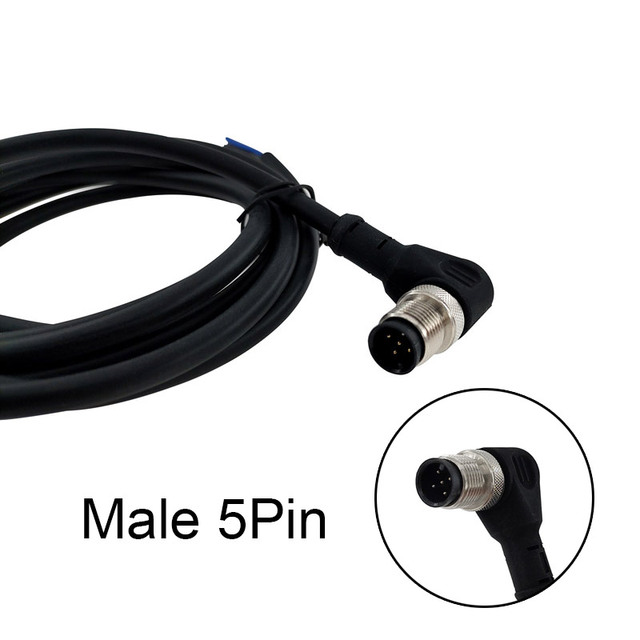

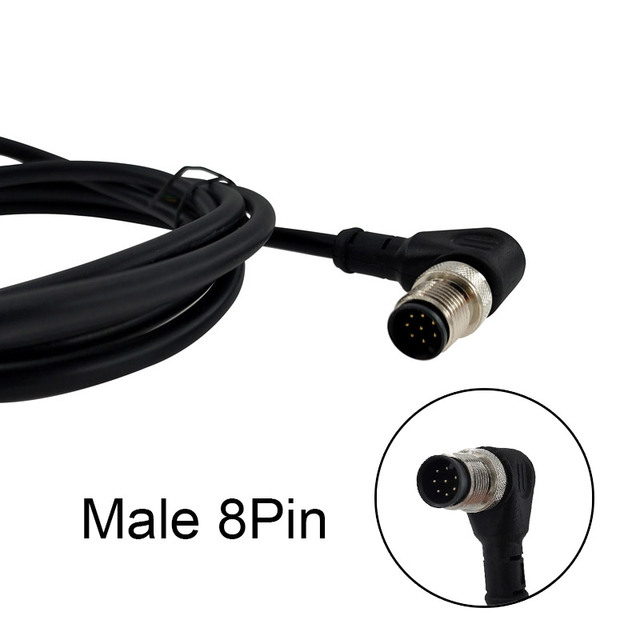

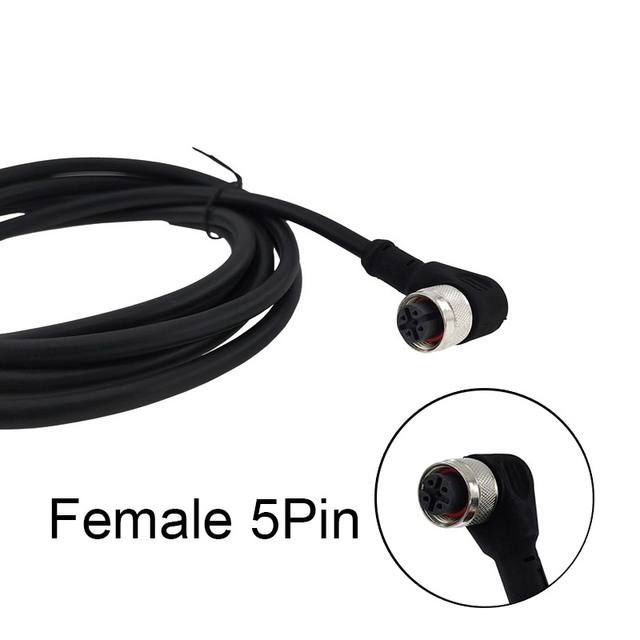

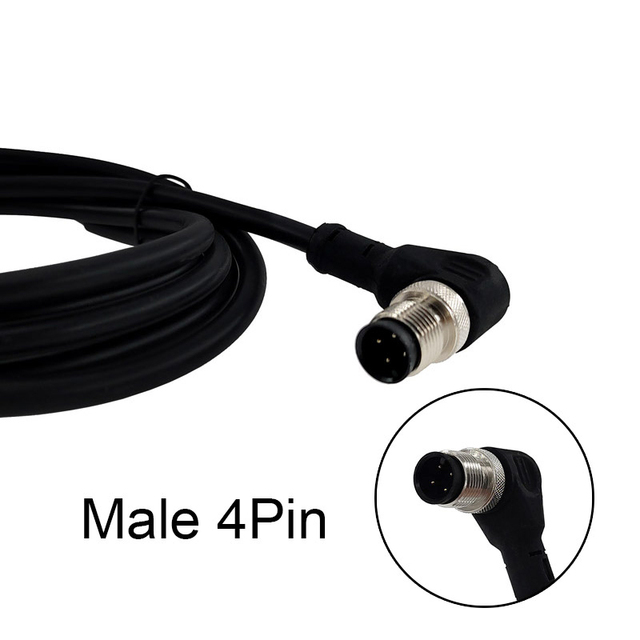

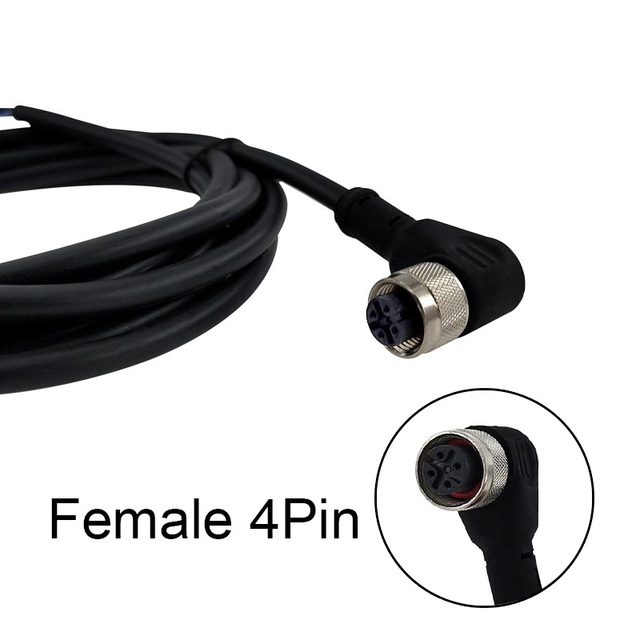

Number of contacts |
4;5;8 |
|
Lcking systom |
screw |
|
Temination |
solder moulded-on cable |
|
Wire gauge in mm2 |
Max. 0.25mm2 (WAG 24) |
|
Shell protect ion |
IP67 |
|
Mechanical operation |
>100 Steckzyklen/>100 Steckzyklen |
|
Upper temperature |
+85 °C |
|
Lower temperature |
-25 °C |
|
Rated voltage |
250V 60V 60V |
|
Rated inoulse voitage |
2500V 1500V 800V |
|
Pollution degree |
3 |
|
over voltage categorie |
11 |
|
Materiall group |
11 |
|
Rated current (40°C) |
4A 4A |
|
Contact resistance |
≤3Ω |
|
Pin contact |
CuzN (Messing/brass) |
|
Contact plating |
Au (Go1e/gold) |
|
Male insert |
PBT/PA(UL94HB) |
