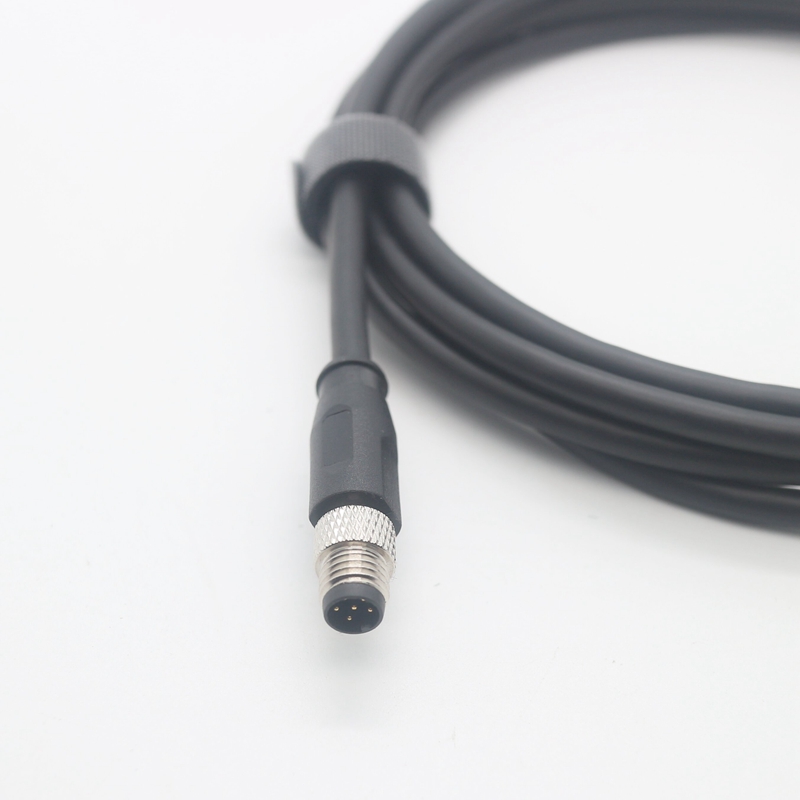

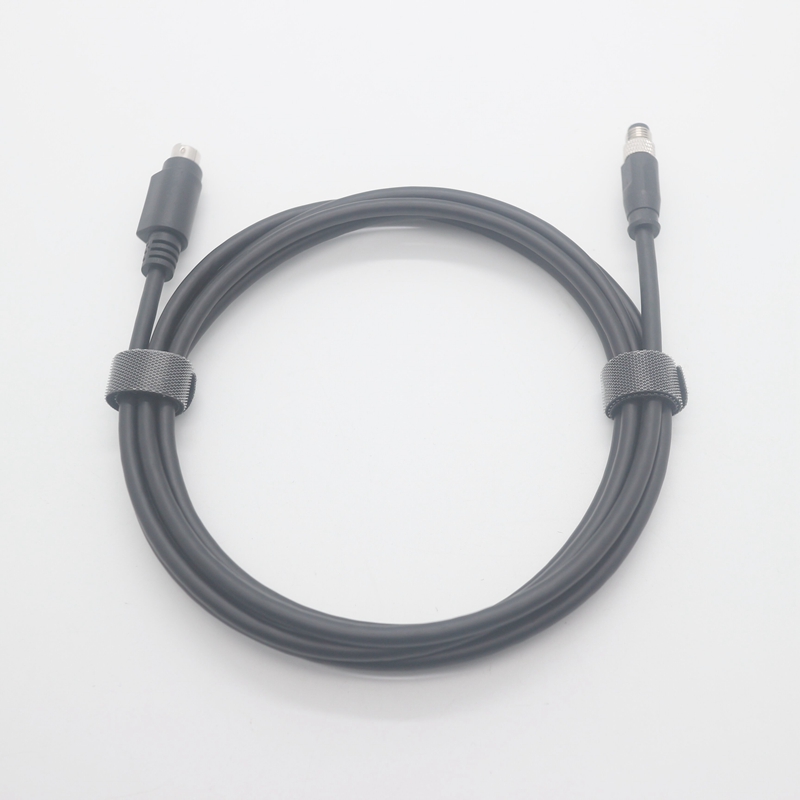

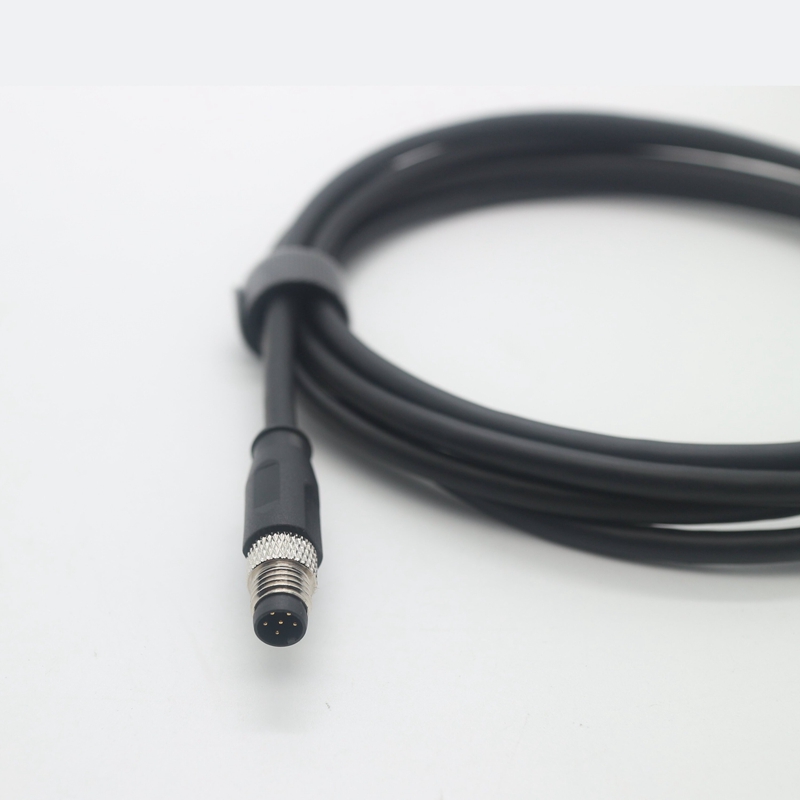

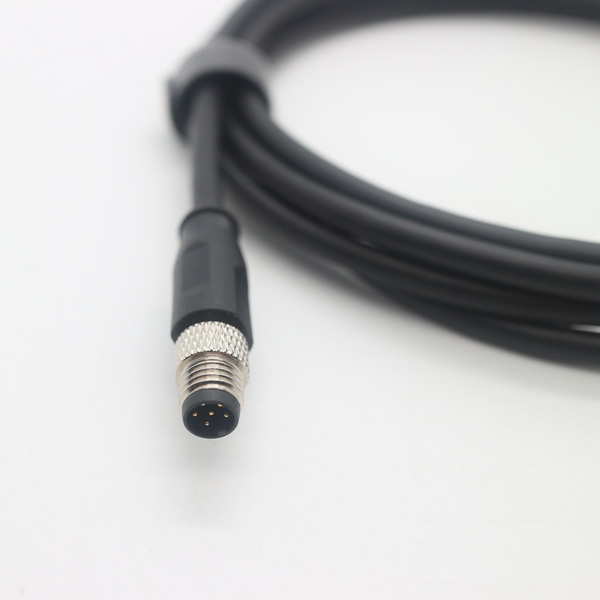

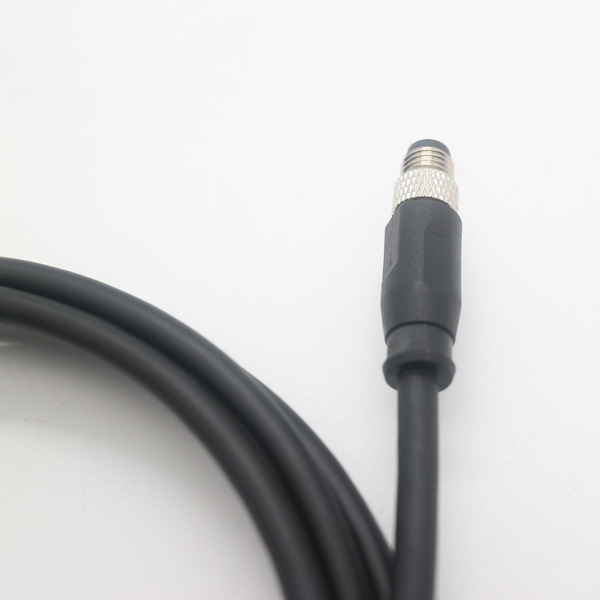

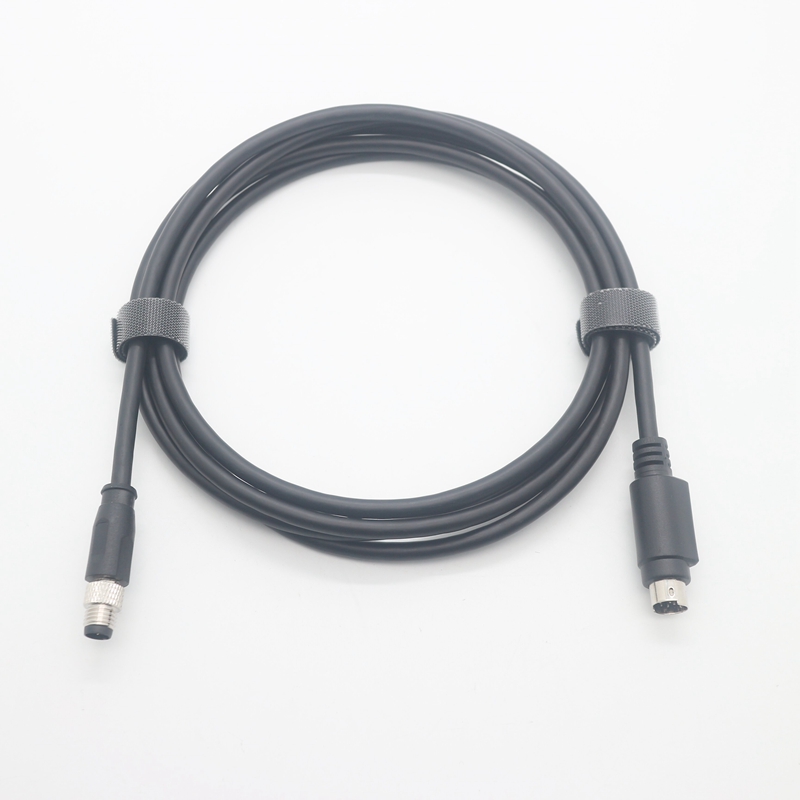

Number of cores: 3 4 5 6 8
Wiring mode: welding, screw crimping
Connection method: threaded connection
Waterproof grade: IP67
Current: 3A/60V
Industry standard: IEC 61076-2-101
Plug guide: straight head, elbow coupling screw/nut: copper nickel plating/plastic
Shell/shell: TPU adapter gauge: 20-26AWG
Connector conductor: copper gold-plated
Specification package: 1pcs
Specification box: 49 * 23 * 27mm
● Plant automation process control
● Packaging label printing equipment
● Industrial instruments and equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Equipment battery and semiconductor
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Marine electronic NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting

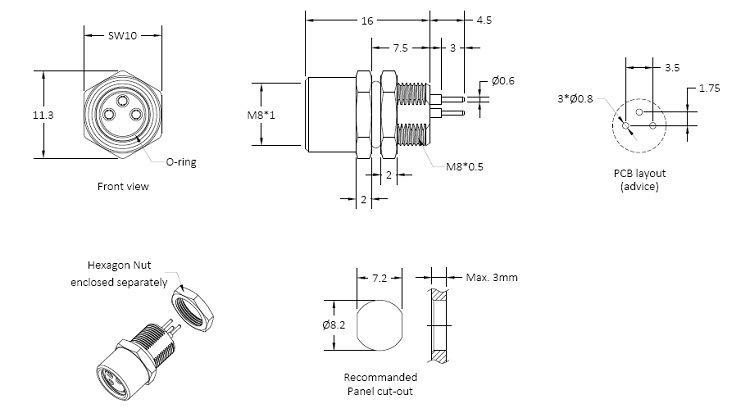

Industry standard IEC 61076-2-104 connector type panel type rear lock
The plating thickness of plug guide straight terminal is 3 µ“
Connector rubber core PA66+GF outer mold/shell metal shell
Applicable current 3A connector conductor copper gold-plated
Applicable voltage: 60V Applicable temperature: - 40 ° C~+105 ° C
Coupling screw/nut copper nickel plating insulation resistance ≥ 100 M Ω
Sealing method Epoxy resin conductor resistance ≤ 5m Ω
Core wire connection mode PCB welding type protection grade IP 67
Sensor, actuator, encoder, motor motor ● Industrial grating light curtain
● Factory automation process control ● Equipment battery, semiconductor
● Packaging label printing equipment ● Industrial camera
● Industrial instruments and equipment ● Robots
● EMS circuit board components ● Medical equipment
● Screws and nuts: brass C3604 nickel-plated 120 μ ", CNC vehicle parts;
● Female terminal: phosphor bronze C5441 nickel base 120 μ "Gold-plated 3 μ ", solid vehicle parts;
● Applicable temperature: dynamic: - 25~80 ℃, static: - 40~105 ℃;
● Protection grade: IP67, plug-in locking status;
● RoHS compliant materials.
